CBB65A-2
CBB65A-2 SPECIAL CAPACITOR FOR LIGHTING METAL HALIDE LAMP
Features and Users:
The capacitor has advantages of low dissipation，high insulation
resistance，good self-healing character, and steady electricity performance,
anti—striking current，strong Over-carrying capacity etc. It is
safe and reliable with Inner anti-explosion device and with outer
discharge resistance. It is applied in lighting metal halide lamp for
the help of the starting and running
Technical Parameter
Max.Temp | Rate voltage | CapacitanceRange | Test voltage | Dissipation Factor | Operating Frequency |
70℃ | 120-580 | 3～100 | T-T2.0Un/60S T-C:≥2500V.AC/60S | Tan∮≤0.002(100Hz) | 50/60Hz |
85℃ | |||||
100℃ |
Executing Standards：lEC61048,IEC61049,EN61048，EN61049,UL810
Capacitance Tolerance:±3％,±5％ or fulfilledupon request.

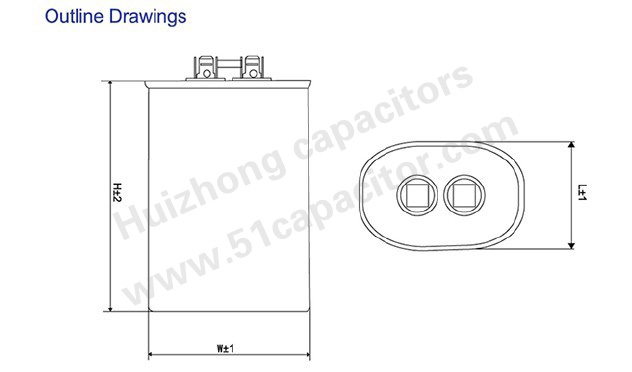

Outline Size
Rated Capacitance(μf) | Rated Voltage(VAC) | Dimension(mm) | ||
L | W | H | ||
10 | 280 | 31.5 | 51.5 | 65 |
22.5 | 38.1 | 66.6 | 100 | |
48 | 45 | 71 | 100 | |
10 | 330 | 31.5 | 51.5 | 100 |
13.5 | 38.1 | 66.6 | 75 | |
17.5 | 38.1 | 66.6 | 100 | |
9.75 | 480 | 38.1 | 66.6 | 75 |
20 | 45 | 71 | 100 | |
24 | 45 | 71 | 100 | |
26 | 450 | 45 | 71 | 125 |
30 | 45 | 71 | 135 | |
32 | 45 | 90 | 100 | |
Note：1. Other types besides the above listed can be produced according to customers needs.
2.Data above may be changed without notice
