CD60-A  MOTOR START CAPAClTORS

Main Feature:

Round Aluminum sealed case with PVC sleeve

Voltages from 110V AC to 330V AC

UL Recognized Capacitors

Applicable Scope :

50Hz/60Hz single-phase AC motor , air conditioning, refrigerator compressor, air condition etc and so on each kind of single-phase AC motor.

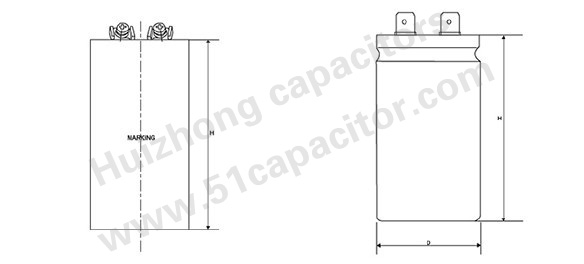

CD60-A  MOTOR START CAPAClTORS(图1)

D1±1mm

26

30

34

35

40

42

45

50

55

H2±2mm

40-60

45-80

45-100

45-100

55-100

55-100

60-100

80-100

100



Technical Specifications:

Working Temperature Range-25+55℃

Rated Voltage Range110330V AC

Rated Capacitance Range501000μf

Rated Permissible Tolerance of Capacitance:± 20

Tangent of Loss Angle (tgs(20"C100Hz))tgs 0.10tgs 0.15

Performance+55"C 110165VAC, on 1 second, off 59 seconds,30000times

              +55,220330VAC, On l second, off 59 seconds15000times

    changing rate of capacitance:±15within original measuring

              value tangent of loss angle=0.20

Withstand Voltage Between TerminaIsapplied 1.2 times working voltage

for 2 seconds. without break down Withstand Voltage Between Terminal and

case2000VAC, for l0 seconds, without breakdown.

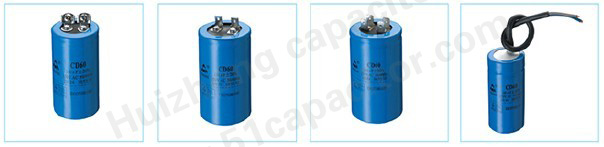

CD60-A  MOTOR START CAPAClTORS(图2)
